Hole color in 3D model

[Petrnejedly]

Hello, is it possible set up different color for each type of hole in 3d model? for example yellow color for thread hole…

Thank you

[mold68]

@Petrnejedly

different color for each type of hole

As i know thats the only way for holes. And it’s just for boolean operations.

Thread color in the 3D model

Hallo. I have one question. We produce molds and we use surface colors according to the type of machining. We use yellow color for metric threads. Is there any option to set the thread color automatically to yellow? It would be much faster than coloring manually. Sometimes it happens that the colored surfaces of the thread turn purple again after the history is regenerated. When we send a part in .stp format for production to a cooperation, it is an isue. [obrazek]

[manuel]

You can change the color in the Attribute Filter

[CECILIO_RR]

I recomend to customize your hole feature with UDF wizard, there is a part you can add colour of your feature.

[Petrnejedly]

Hello, could you please explain how it works?

I don’t know it…

thank you

[CECILIO_RR]

UDF

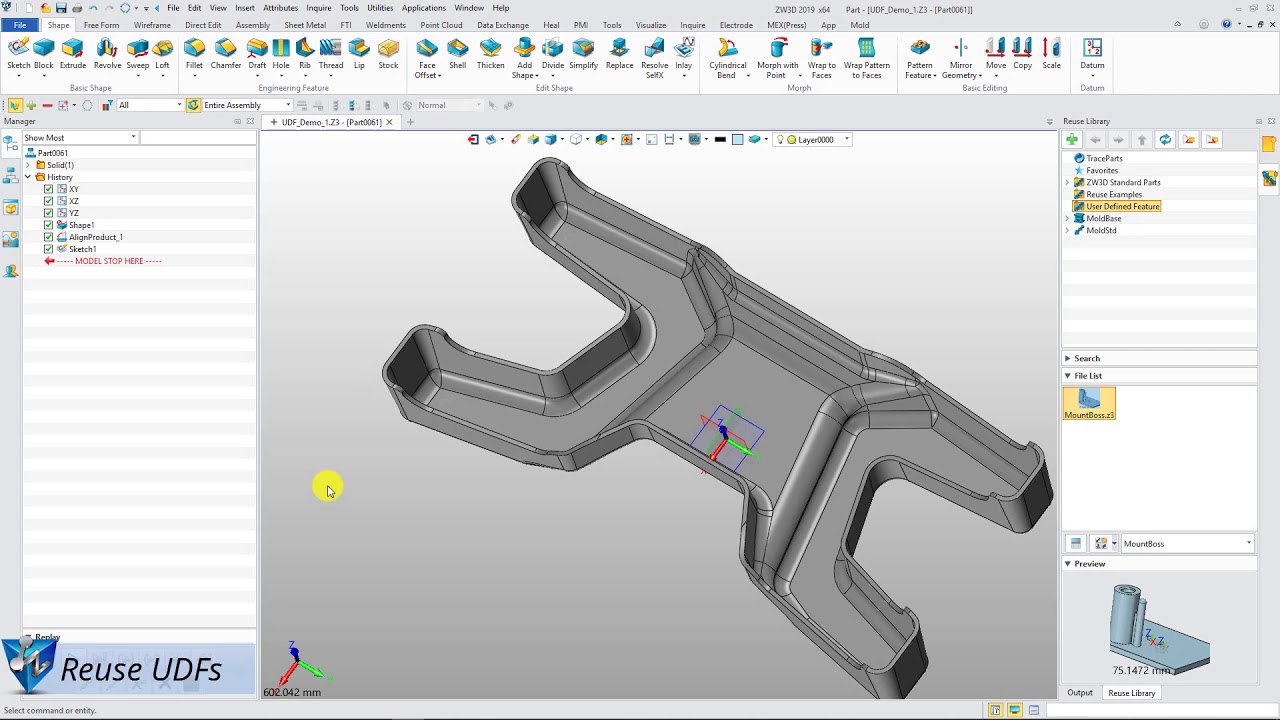

This link of you tube can help

[zw3d_liangfen]

@Petrnejedly

HI

Maybe you can make a macro to change the color of the hole with one click

[zw3d_liangfen]

@Petrnejedly
