Hello everyone,
I was wondering if it was possible to connect any file to a 3D model. For example, if I wanted to connect a table to a file of my choice, it is possible ’
Thanks
Hi, try taking a look at “zw3d standard parts” or the “Configuration and Library Design” manual.
The files you create are linked to an Excel table, which contains characteristics and parameters you can customize.

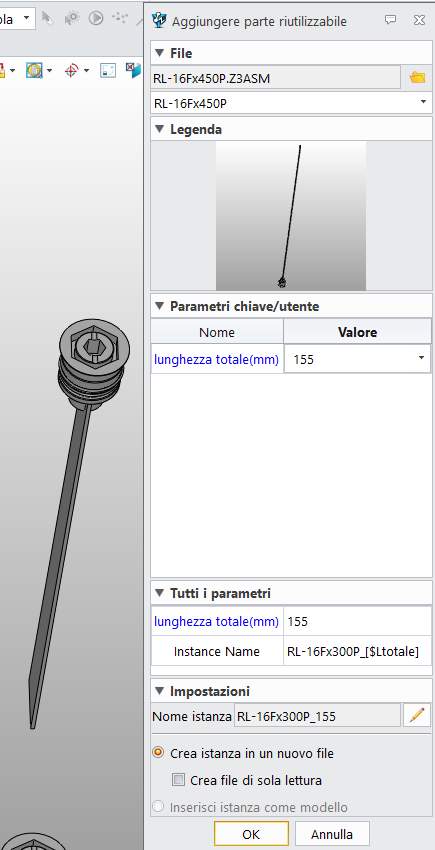

For example, I created this normalized file from a step file. When I insert it, I can choose the total length and it automatically inserts the name of the corresponding catalog object with the chosen length. If I want to change it, I can choose the new length with “replace component.”
For example:
The .Z3ASM file contains the component with the length set as a parameter.
The .Z3L file is a text file and contains the connection specifications between 3D and Excel.
The Excel file contains the parameters, in my case, length and instance name.
I hope this helps.
Cheers
